Machine · Primary crushingRC-J1200 Jaw Crusher
Primary jaw, 1 200 × 900 mm gape, for granite and basalt ROM. Hydraulic CSS from the control room.
Purpose
Primary crushing of hard-rock ROM at the pit or quarry face
Capacity — 380–520 t/h granite, CSS 125–200 mm; first article 16 weeks
The RC-J1200 is Ridgecast's primary jaw for hard-rock ROM. A 1 200 × 900 mm gape takes blasted granite and basalt without a second pass through the hammer. The pitman is a single steel casting; toggle and cheek plates are written to a published wear cycle.
Hydraulic CSS adjustment is from the control room. First article includes a liner set and the dimension sheet. Repeat liners ship against the same drawing number.
Technical specifications
| Gape | 1 200 × 900 mm |
|---|---|
| CSS | 80–200 mm hydraulic |
| Power | 160 kW |
| Mass | 48 t without liners |

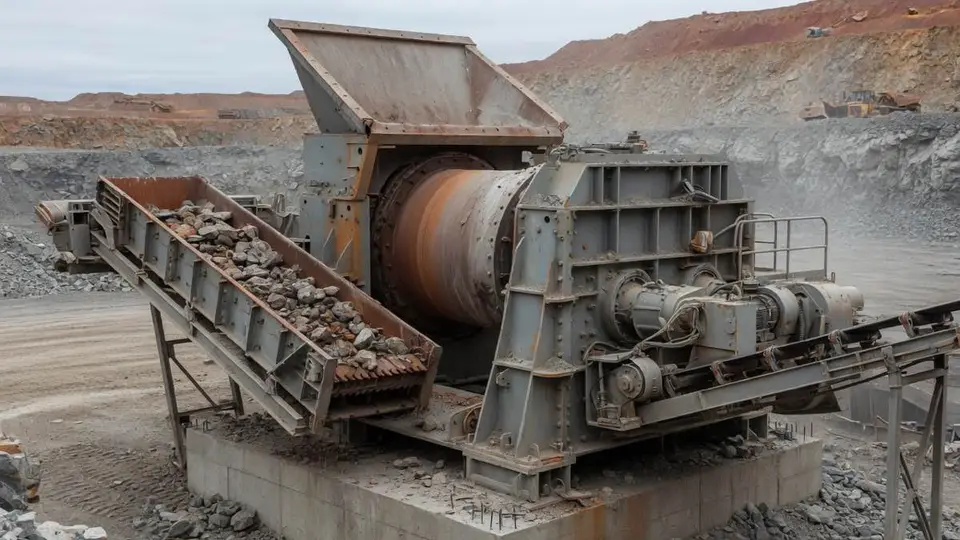

Gallery
Not sure which machine the rock wants?
Send a rock sample and the target product. The applications desk sizes the machine from the sample, not from a brochure t/h.
